| مكان المنشأ: | شنتشن |
| اسم العلامة التجارية: | RYGH Tech; OEM or ODM available |
| إصدار الشهادات: | CE, ROHS |
| رقم الموديل: | RYGH804C-FL100W-2835-135-V3.0 |
| الحد الأدنى لكمية: | 1pc |
|---|---|
| الأسعار: | USD4.62/PC |
| تفاصيل التغليف: | ورقة كرتون + رغوة ، معيار التصدير |
| وقت التسليم: | النظام عينة 5-7 أيام ، طلب بالجملة 7-15 أيام عمل |
| شروط الدفع: | T/T, ويسترن يونيون, paypal, MoneyGram |
| القدرة على العرض: | 5000 قطعة / الربع |
| قوة: | 100 واط | الجهد االكهربى: | AC 180-300V |
|---|---|---|---|
| رقاقة: | تايوان | مواد: | الألومنيوم |
| CCT: | 2700K-7000K | تعمل درجة الحرارة: | -30-55 ℃ |
| حماية: | OVP ، OCP ، OTP | زاوية الشعاع: | 140° |
| إبراز: | exterior parking lot lighting,parking area lighting fixtures,parking area lighting fixtures |
||

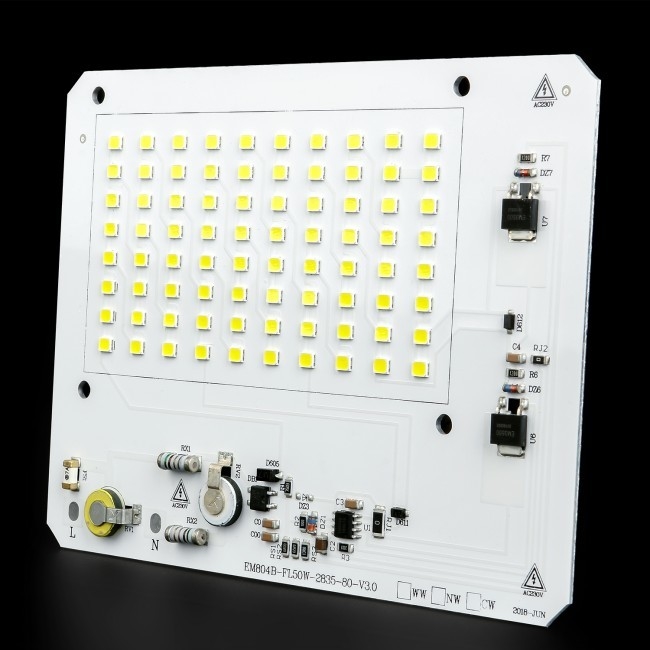

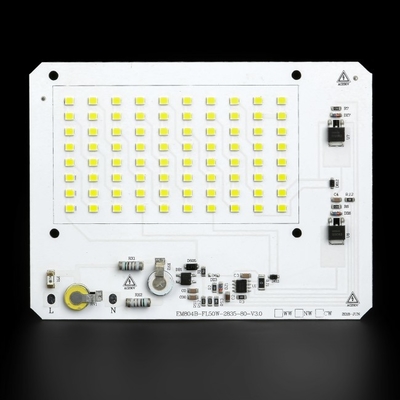

Board 100w 11000lm economy 80ra aluminum apcb DOB LED Light for Flood light
The DOB is configured to arrange the LED light source and the driving circuit on the same substrate. The HVLED can connect the light source in series with the mains, so that the number of parts of the LED driving circuit can be reduced, thereby saving space. Seoul's Acrich technology is also a high-voltage LED + segmented constant current IC drive mode, which is the same concept as the DOB (Driver on board) technology on the market.
| Part no. | RYGH804C-FL100W-2835-135-V3.0 |
| LED Power | 100Watt |
| Voltage | AC 180-300V |
| Light Source | Taiwan (Vendor of Aurora) |
| Power Factor | FP>0.98 |
| Working Temperature | -30-55℃ |
| Dimen-sion (mm) | W110mm*162mm |
| CCT | 2700K-7000K |
| Components life time | 100,000 hrs |
| CRI | >80 |
| Beam Angle | 120° |
| Chip | Epistar 2835, Osram 2835 |

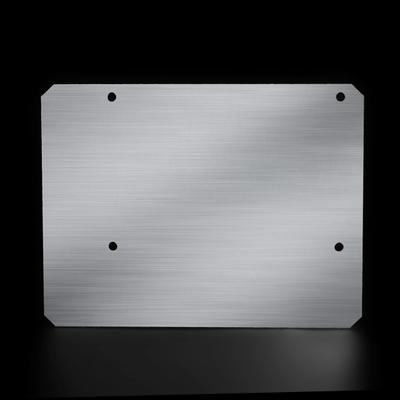

| Material | AL thermal conductive 1.6 |
| LED Quantity | 135pcs |
| Flicker | Yes |
| Warranty | 5 Years |
Our Advantages:
Application:
High way/Park/Street/Roadway/Parking Lot/Public square/ plaza/Campus/Airfield/Farm & Ranch/Remote Area/Military Base/Goverment project for special use etc.
Why choose us:
Direct Marketing
Timely feedback, sincere service
TUV/ CE/RoHS/PSE/FCC Certificate
Low Min Order Quantity
100% QC Inspection
Quantity Guarantee
Free OEM&ODM Service
Good After-sale Service
100% QC Inspection
